RME - Radio Manufacturing Engineers

RME - 69
RME-69 receiver
It's come to my attention that a lot of the RNE-69 docs on the web are a little hard to read. Here are some fresh scans from the original factory document.

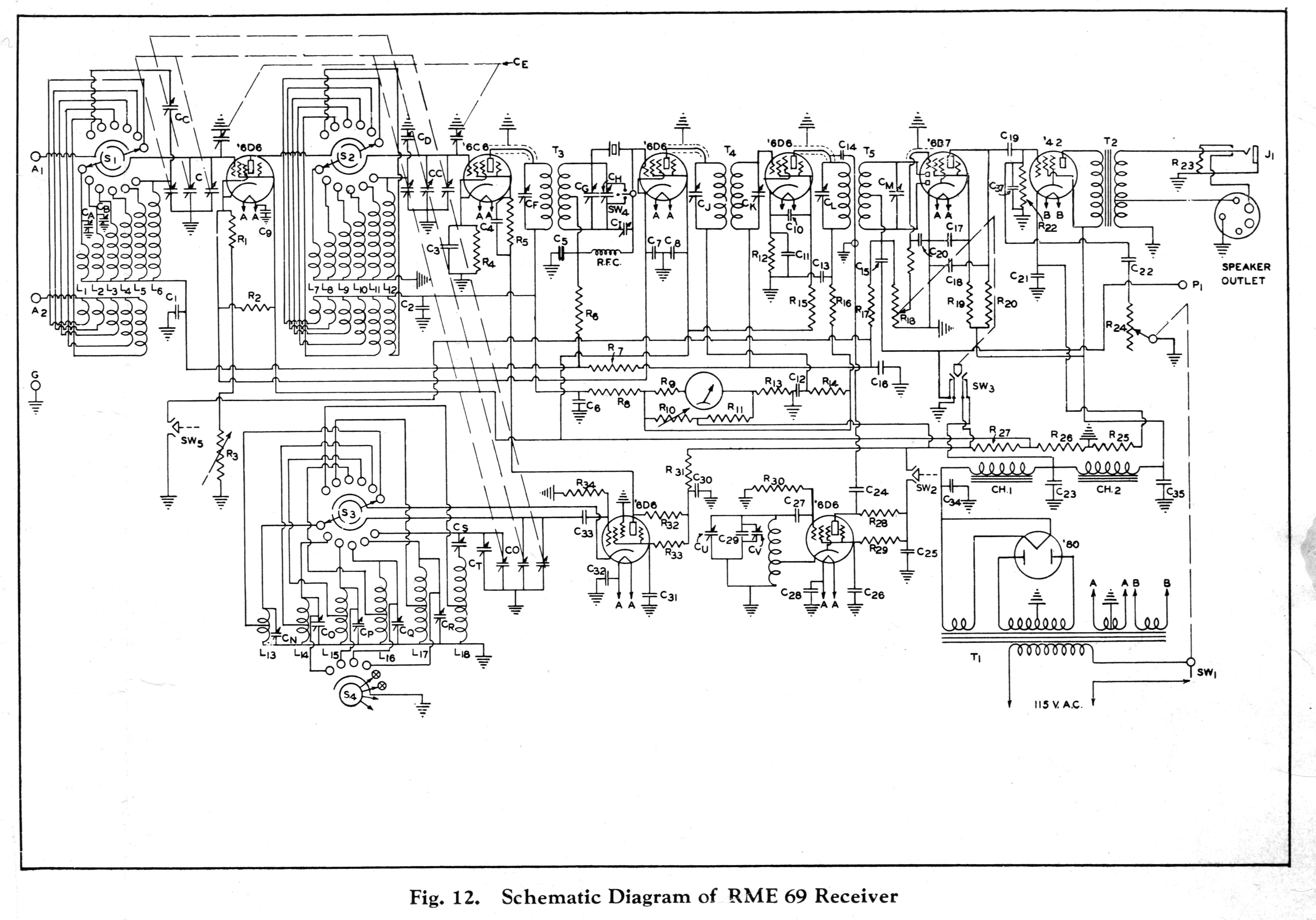

RME-69 Schematic.png

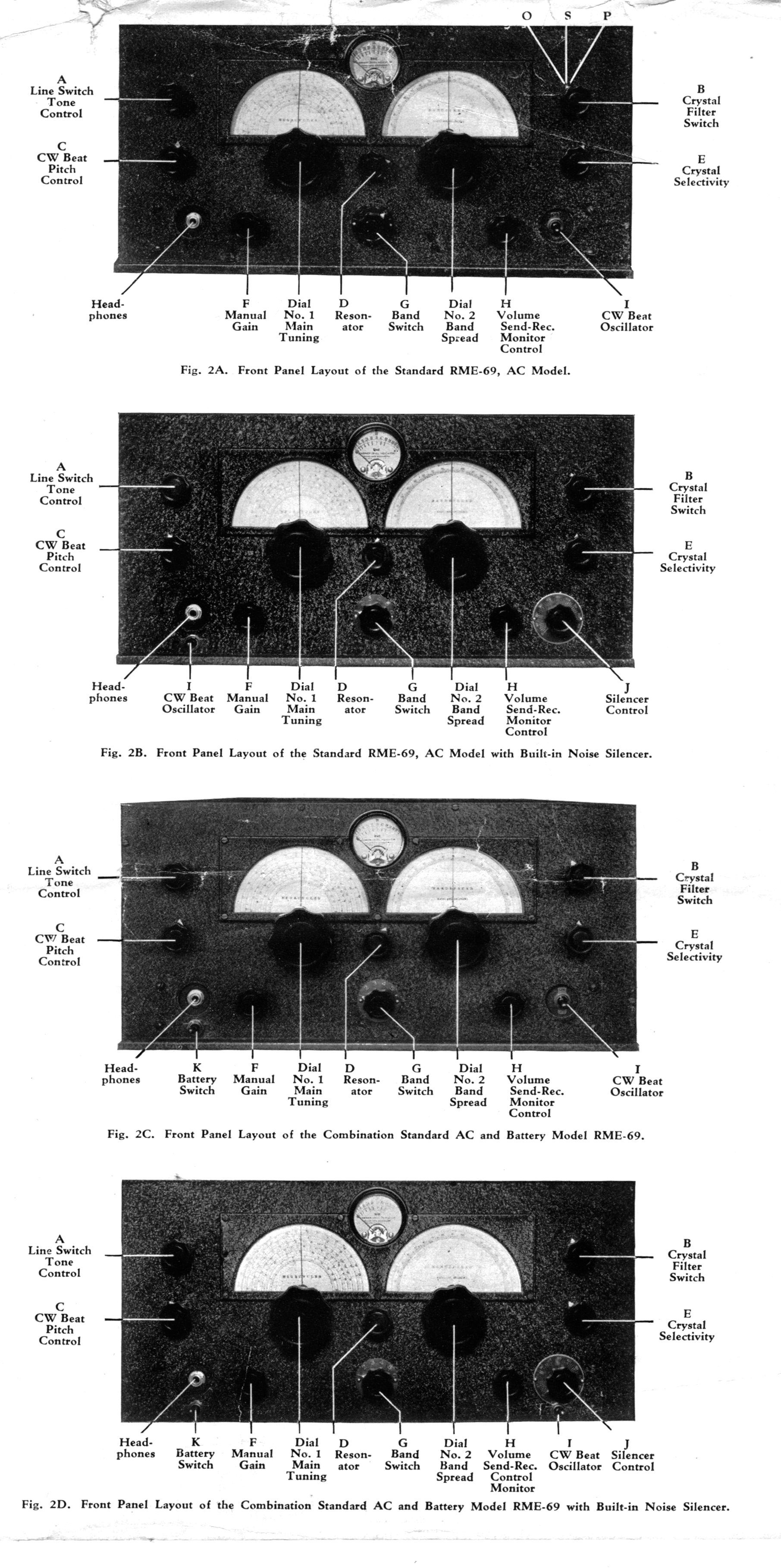

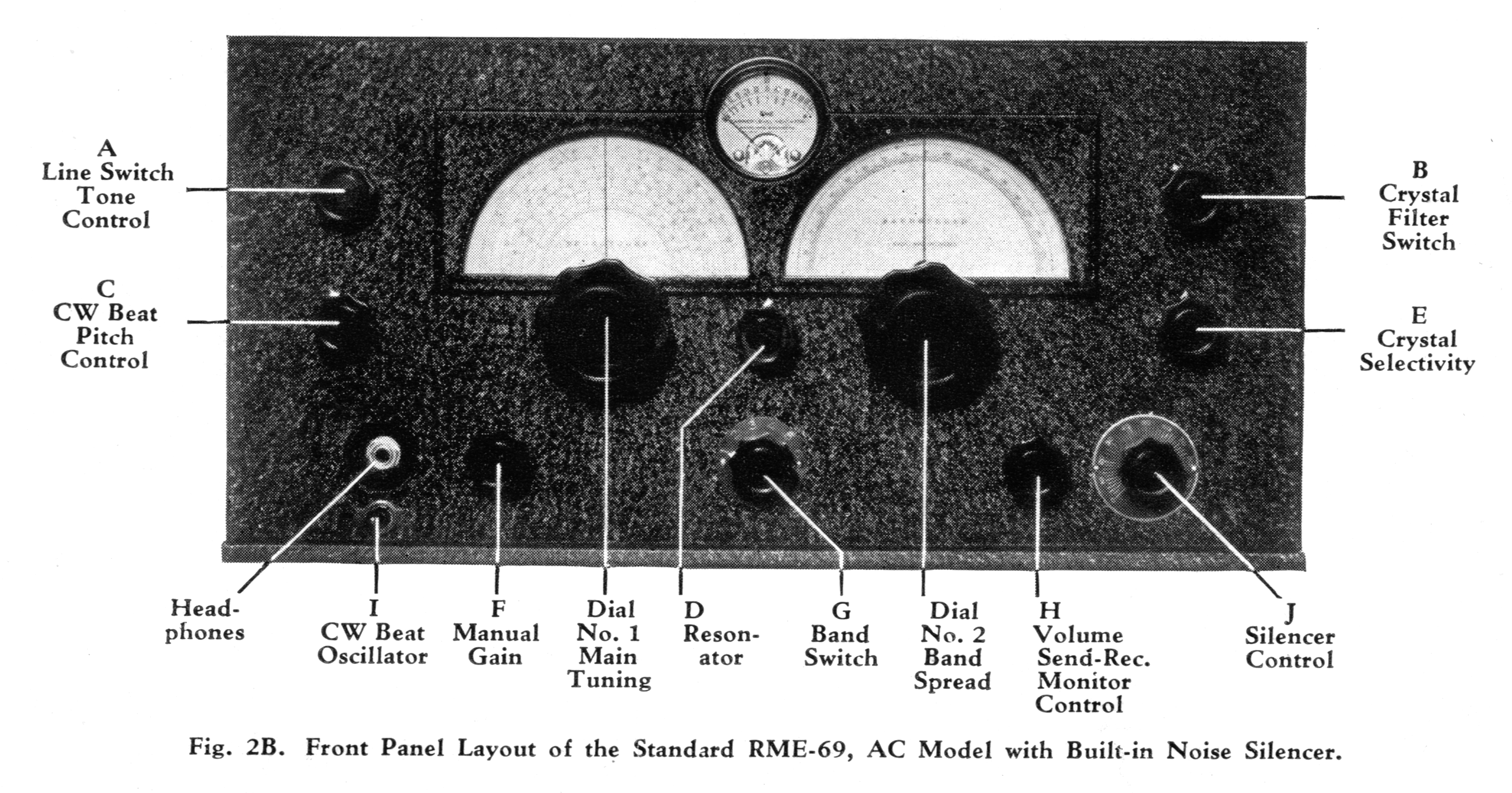

RME-69 Front Panel Layout.png

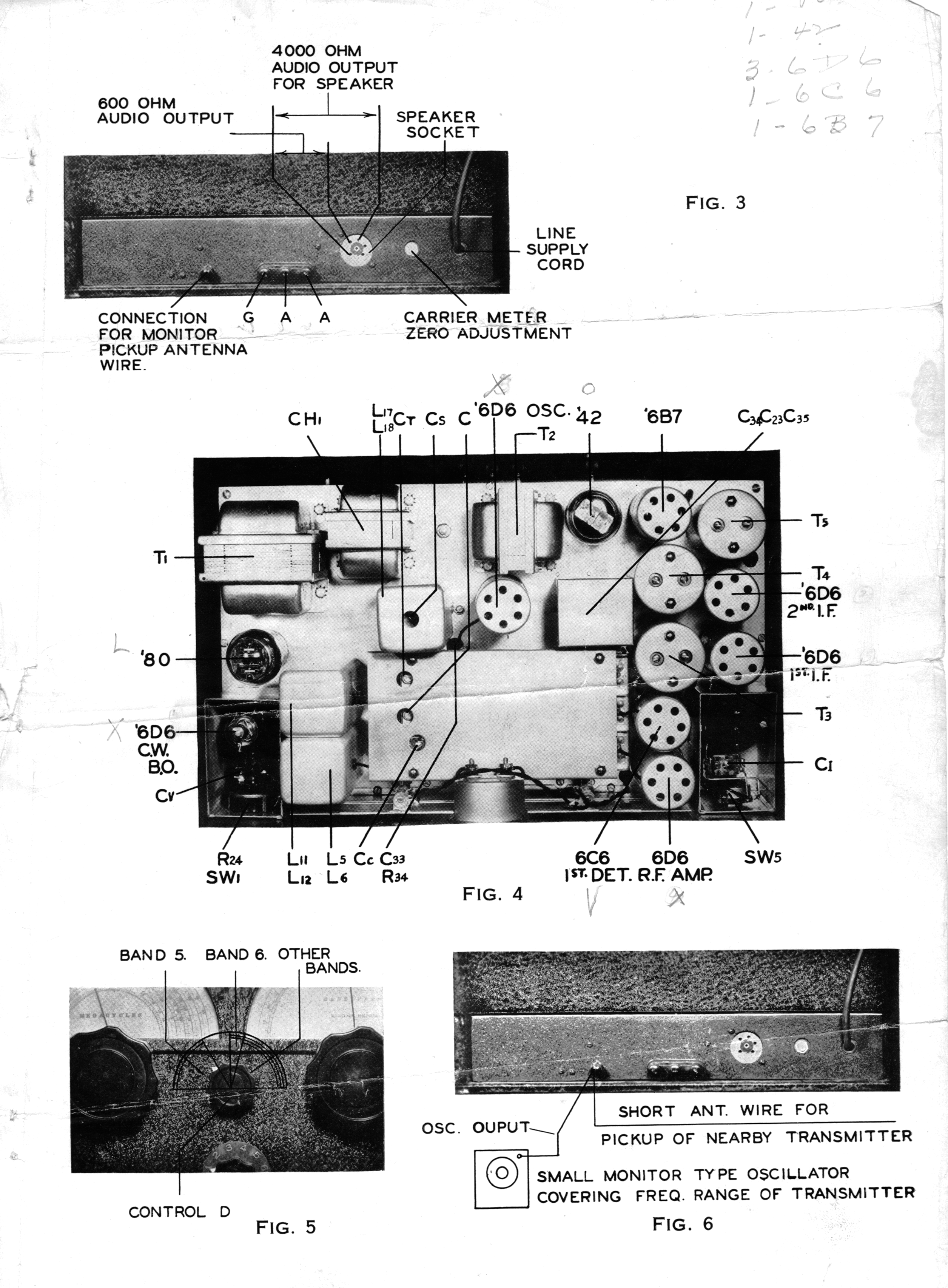

RME-69 Manual Photos.png

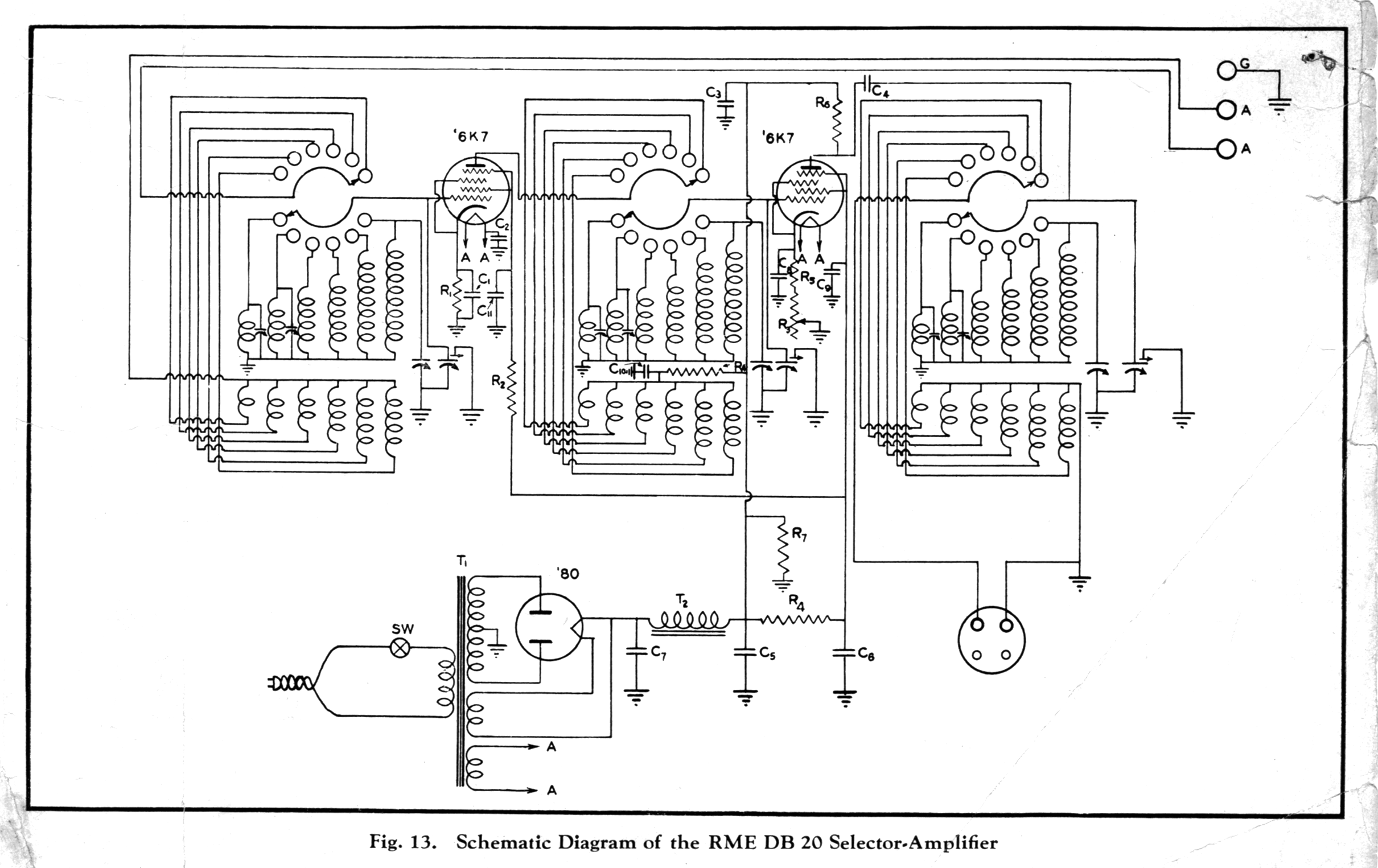

DB-20 Schematic.png


An article I wrote in the '90's about the RME-69

IF Alignment Videos
